Introduction to Ethernet Network Technology

Ethernet powers many of the world’s local area networks

Ethernet Network Technology, For several many years, Ethernet has confirmed itself as a surprisingly cheaper, fairly rapid, and really popular LAN era.

This tutorial explains the fundamental functionality of Ethernet and how it may be utilized on domestic and commercial enterprise networks.

Ethernet Network Technology,The History of Ethernet

Ethernet Network Technology, Engineers Bob Metcalfe and D.R. Boggs advanced Ethernet beginning in 1972.

Industry requirements primarily based on their work had been hooked up in 1980 beneath the IEEE 802.3 set of specs.

Ethernet specs define low-stage information transmission protocols and the technical details manufacturers want to recognize to build Ethernet products like cards and cables.

Ethernet technology has advanced and matured over a long time duration.

The common customer can generally depend upon off-the-shelf Ethernet products to paintings as designed and to paintings with each different.

Ethernet Technology

Ethernet Network Technology, Traditional Ethernet supports statistics transfers at a rate of 10 megabits in keeping with 2d (Mbps).

As the overall performance wishes of networks elevated over the years, the industry created extra Ethernet specifications for Fast.

Ethernet and Gigabit Ethernet. Fast Ethernet extends conventional Ethernet overall performance as much as a hundred Mbps and Gigabit Ethernet up to 1000 Mbps speeds.

Although products are not yet available to the average patron.

10 Gigabit Ethernet (10,000 Mbps) also exist and are used on a few commercial enterprise networks and on Internet2.

Category 5 or CAT5 cable, helps both traditional and Fast Ethernet.

The Category 5e (CAT5e) and CAT6 cables guide Gigabit Ethernet.

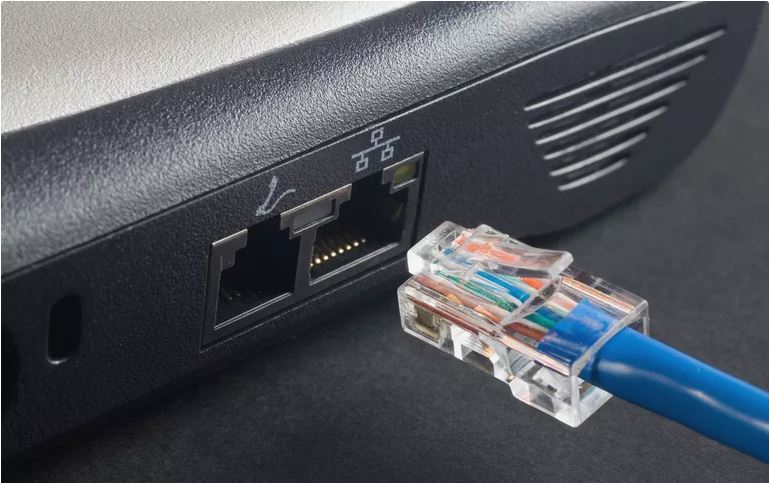

Ethernet Network Technology, To join Ethernet cables to a pc (or different network devices).

a person plugs a cable without delay into the device’s Ethernet port.

Some devices without Ethernet helps can also aid Ethernet connections through dongles which includes USB-to-Ethernet adapters.

Ethernet cables utilize connectors that appearance similar to the RJ-45 connector used with conventional phones.

For students: In the OSI model, Ethernet technology operates on the physical and information hyperlink layers.

Layers One and Two respectively.

network Ethernet helps all famous community and higher-stage protocols, basically TCP/IP.

Ethernet Network Technology,Types of Ethernet

Often called Thicknet, 10Base5 changed into the first incarnation of Ethernet technology.

The enterprise used Thicknet in the Nineteen Eighties until 10Base2 Thinnet appeared.

Compared to Thicknet, Thinnet provided the advantage of thinner (5 millimeters vs 10 millimeters) and extra flexible cabling.

making it simpler to twine workplace buildings for Ethernet.

The most common shape of conventional Ethernet.

however, became 10Base-T. 10Base-T gives better electric homes than Thicknet or Thinnet, because 10Base-T cables utilize unshielded twisted pair (UTP) wiring as opposed to coaxial. 10Base-T also proved extra fee effective than options like fiber optic cabling.

Ethernet Network Technology, Numerous other lesser-recognized Ethernet requirements exist.

which include 10Base-FL, 10Base-FB, and 10Base-FP for fiber optic networks and 10Broad36 for broadband (cable television) cabling.

All of the above conventional bureaucracy.

including 10Base-T have been made obsolete by Fast and Gigabit Ethernet.

Ethernet Network Technology,More About Fast Ethernet

In the mid-Nineteen Nineties, Fast Ethernet technology matured and met its layout goals of a).

increasing the overall performance of traditional Ethernet whilst b).

averting the want to absolutely re-cable existing Ethernet networks. Fast Ethernet is available in two major types:

  • 100Base-T (the usage of unshielded twisted pair cable)
  • 100Base-FX (the usage of fiber optic cable)

By a ways the most popular of those is 100Base-T, a general that consists of 100Base-TX (Category five UTP), 100Base-T2 (Category three or higher UTP), and 100Base-T4 (100Base-T2 cabling modified to include extra cord pairs).

Ethernet Network Technology,More About Gigabit Ethernet

While Fast Ethernet progressed traditional Ethernet from 10 Megabit to one hundred Megabit velocity.

Gigabit Ethernet boasts the equal order-of-value improvement.

over Fast Ethernet with the aid of imparting speeds of a thousand Megabits (1 Gigabit).

Gigabit Ethernet become first made to journey over optical and copper cabling.

But the 1000Base-T fashionable successfully supports it as well.

1000Base-T uses Category 5 cabling similar to 100 Mbps Ethernet, although achieving gigabit pace requires the usage of additional cord pairs.

Ethernet Topologies and Protocols

Traditional Ethernet employs a bus topology, that means that each one devices or hosts on the network use the equal shared communique line.

Each device possesses an Ethernet address, additionally known as MAC cope with.

Sending gadgets use Ethernet addresses to specify the intended recipient of messages.

Data despatched over the Ethernet exists within the kinds of frames.

An Ethernet frame carries a header, a statistics section, and a footer having a mixed length of no more than 1518 bytes.

The Ethernet header consists of the addresses of each the meant recipient and the sender.

Data sent over the Ethernet is automatically broadcast to all devices on the community.

By comparing their Ethernet cope with in opposition to the deal with in the frame header.

each Ethernet tool assessments each frame to determine if it was supposed for them and reads or discards the body as appropriate.

Network adapters incorporate this feature into their hardware.

Devices looking to transmit on the Ethernet first perform a initial take a look at to decide.

whether the medium is to be had or whether a transmission is currently in progress.

If the Ethernet is to be had, the sending tool transmits onto the cord. It’s feasible.

however, that two devices will carry out this test at about the equal time and each transmit concurrently.

By layout, as a performance change-off, the Ethernet standard does no longer save you more than one simultaneous transmission.

These so-called collisions, when they occur, cause both transmissions to fail and require both sending gadgets to re-transmit.

Ethernet makes use of an algorithm based on random postpone instances to determine the proper waiting duration between re-transmissions.

The community adapter also implements this algorithm.

In conventional Ethernet, this protocol for broadcasting, listening.

And detecting collisions is called CSMA/CD (Carrier Sense Multiple Access / Collision Detection).

Some more recent forms of Ethernet do now not use CSMA/CD.

Instead, they use the so-called full duplex Ethernet protocol.

Which supports point-to-factor simultaneous sends and gets and not using a listening required.

More About Ethernet Devices

As stated in advance, Ethernet cables are confined in their reach.

And people distances (as short as a hundred meters) are insufficient to cover medium-sized and big community installations.

A repeater in Ethernet networking is a tool that permits multiple cables to be joined and more distances to be spanned.

A bridge device can be part of an Ethernet to every other network of a one of a kind kind.

such as a wi-fi network. One popular type of repeater tool is an Ethernet hub.

Other gadgets every so often stressed with hubs are switches and routers.

Ethernet community adapters also exist in a couple of forms.

Newer personal computers and sport consoles function a integrated Ethernet adapter.

USB-to-Ethernet adapters and wi-fi Ethernet adapters can also be configured to paintings with many more recent gadgets.


Ethernet is one of the Internet’s key technologies. Despite its advanced age, Ethernet maintains to strength a few of the global’s local region networks and usually is enhancing to fulfill future wishes for high-performance networking.
