Monitoring and Analysis Tool for Linux

Analysis Tool when we communicate of overall performance in computing, we seek advice from the connection among our assets and the duties that they lets in us to complete in a given time period.

In a day of fierceless competition among companies, it’s far essential that we discover ways to use what we’ve got on the exceptional of its potential. The waste of hardware or software program resources, or the lack of ability to recognize how to use them more effectively, ends up being a loss that we just can’t have the funds for if we want to be at the top of our game.

At the identical time, we ought to be careful to now not take our sources to a restrict in which sustained use will yield irreparable harm.

In this newsletter we are able to introduce you to a notably new overall performance evaluation device and offer guidelines that you could use to monitor your Linux structures, consisting of hardware and applications. This will assist you to make certain that they operate so that you are capable to provide the desired outcomes without wasting sources or your personal strength.

Analysis Tool, Introducing and installing Perf in Linux

Among others, Linux presents a performance tracking and evaluation device called effortlessly perf. So what distinguishes perf from different famous gear with which you are already acquainted?

The solution is that perf offers get entry to to the Performance Monitoring Unit within the CPU, and for that reason allows us to have a close take a look at the behavior of the hardware and its associated activities.

In addition, it can also screen software occasions, and create reports out of the information this is gathered.

You can deploy perf in RPM-based distributions with:

# yum update && yum install perf     [CentOS / RHEL / Fedora]
# dnf update && dnf install perf     [Fedora 23+ releases]

In Debian and derivatives:

# sudo aptitude update && sudo aptitude install linux-tools-$(uname -r) linux-tools-generic

If uname -r within the command above returns greater strings except the real version (3.2.0-23generic  in my case), you could have to type linux-equipment-3.2.Zero-23 rather than the use of the output of uname.

It is also critical to observe that perf yields incomplete outcomes when run in a guest on pinnacle of VirtualBox or VMWare as they do not allow access to hardware counters as other virtualization technology (which include KVM or XEN) do.

Additionally, remember that a few perf commands may be constrained to root by means of default, which can be disabled (until the machine is rebooted) by using doing:

# echo 0 > /proc/sys/kernel/perf_event_paranoid

If you need to disable paranoid mode permanently, update the following setting in /etc/sysctl.conf file.

kernel.perf_event_paranoid = 0

Analysis Tool, Subcommands

Once you have got installed perf, you can talk over with its man web page for a listing of to be had subcommands (you could consider subcommands as special options that open a selected window into the gadget). For fine and extra entire effects, use perf both as root or through sudo.

Perf list

Perf list (without options) returns all of the symbolic event kinds (lengthy list). If you want to view the listing of events to be had in a particular class, use perf list accompanied with the aid of the category name ([hw|sw|cache|tracepoint|pmu|event_glob]), along with:

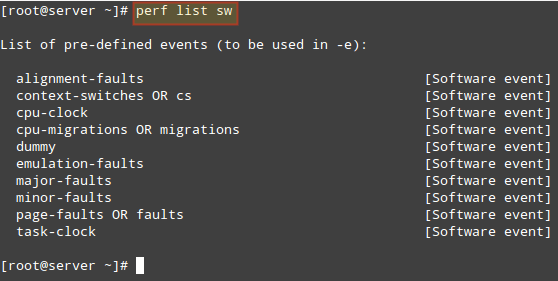

Display list of software program pre-defined events in Linux:

# perf list sw

Perf stat

Analysis Tool,Perf stat runs a command and collects Linux performance statistics at some stage in the execution of such command. What takes place in our device when we run dd?

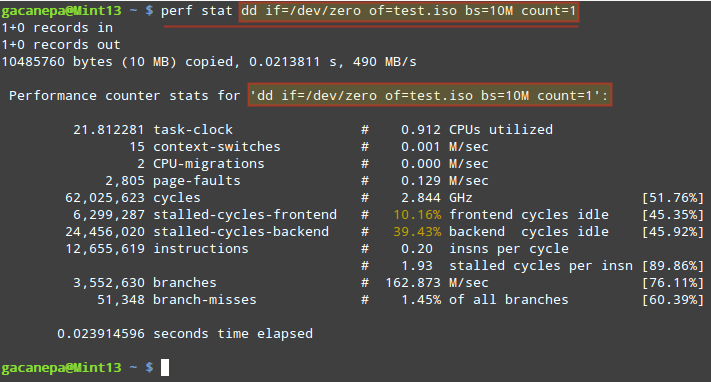

# perf stat dd if=/dev/zero of=test.iso bs=10M count=1

The stats shown above imply, amongst other matters:

  • The execution of the dd command took 21.812281 milliseconds of CPU. If we divide this quantity by means of the “seconds time elapsed” price beneath (23.914596 milliseconds), it yields zero.912 (CPU utilized).
  • While the command become executed, 15 context-switches (also known as procedure switches) imply that the CPUs have been switched 15 times from one technique (or thread) to any other.
  • 2 CPU migrations is the expected end result when in a 2-middle CPU the workload is shipped lightly among the number of cores.
  • During that point (21.812281 milliseconds), the overall quantity of CPU cycles that have been consumed become sixty two,1/2,623, which divided via zero.021812281 seconds offers 2.843 GHz.
  • If we divide the number of cycles by means of the entire instructions be counted we get 4.Nine Cycles Per Instruction, which means that every coaching took almost 5 CPU cycles to finish (on common). We can blame this (at least in part) at the wide variety of branches and department-misses (see underneath), which emerge as losing or misusing CPU cycles.
  • As the command changed into accomplished, a complete of three,552,630 branches had been encountered. This is the CPU-stage illustration of choice factors and loops in the code. The more branches, the decrease the overall performance. To compensate for this, all cutting-edge CPUs try to predict the glide the code will take. 51,348 department-misses indicate the prediction characteristic become wrong 1.Forty five% of the time.

Analysis Tool, the same principle applies to amassing stats (or in different phrases, profiling) whilst an utility is jogging. Simply release the desired application and after an affordable period of time (which is as much as you) near it, and perf will show the stats in the screen. By studying the ones stats you could become aware of potential problems.

Perf top

Perf top is similar to pinnacle command, in that it displays an nearly real-time system profile (additionally referred to as live analysis).

Analysis Tool, With the -a alternative you will show all the known event types, whereas the -e alternative will permit you to choose a specific event category (as returned through perf list):

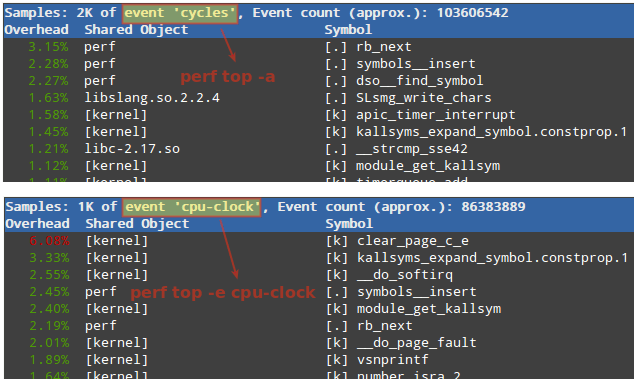

Will display all cycles occasion.

perf top -a

Will display all cpu-clock related events.

perf top -e cpu-clock

The first column within the output above represents the percentage of samples taken on the grounds that the start of the run, grouped by means of feature Symbol and Shared Object. More alternatives are to be had in man perf-top.

Perf record, Analysis Tool

Perf record runs a command and saves the statistical facts into a document named perf.Data in the present day running directory. It runs similarly to perf stat.

Type perf document followed by a command:

# perf record dd if=/dev/null of=test.iso bs=10M count=1

Perf report

Perf document formats the statistics accumulated in perf.Statistics above into a overall performance report:

# sudo perf report

All of the above subcommands have a dedicated man page that can be invoked as:

# man perf-subcommand

Wherein subcommand is both listing, stat, pinnacle, report, or report. These are the maximum frequently used subcommands; others are listed within the documentation (confer with the Summary phase for the hyperlink).
